In mathematics and computer science, graph theory is the study of graphs—mathematical structures used to model pairwise relationships between objects.

The terminology introduced here is used throughout the remainder of this website to describe how visualizations are built. These concepts originate in graph theory and the Graphviz tool.

Graph

A graph is a collection of nodes and the edges that connect them. The illustration below shows a simple example of a graph.

Example of a simple graph with nodes and edges

Node

A graph is composed of nodes, which represent the objects or entities in the visualization.

Example of a single node in a graph

Edge

Edges are the connections between nodes. They represent the relationships or interactions between the entities.

Example of an edge connecting two nodes

Undirected Graph

An undirected graph is one in which edges have no inherent direction.
The relationship between the two connected nodes is mutual.

Example of an undirected graph with bidirectional relationships

Directed Graph

A directed graph (or digraph) uses edges with explicit direction, indicating a one‑way relationship from one node to another.

Example of a directed graph with arrows showing direction

Labels

Nodes can have labels, which provide text describing the node. Labels may appear inside the node or outside the node, depending on the node shape and the label attributes.

Example of a node with an outside label

Edges can also have labels. The main edge label appears on the edge itself:

Example of an edge with a label on the edge

Labels may also be placed at the tail and/or head of the edge using the taillabel and headlabel attributes:

Example of an edge with tail and head labels

A label can also be positioned outside the edge using the xlabel attribute, although this placement may vary depending on the layout algorithm and spline routing:

Example of an edge with an outside xlabel

Edge labels are especially useful for describing the relationship between nodes. For example, a set of family relationships might be labeled as follows:

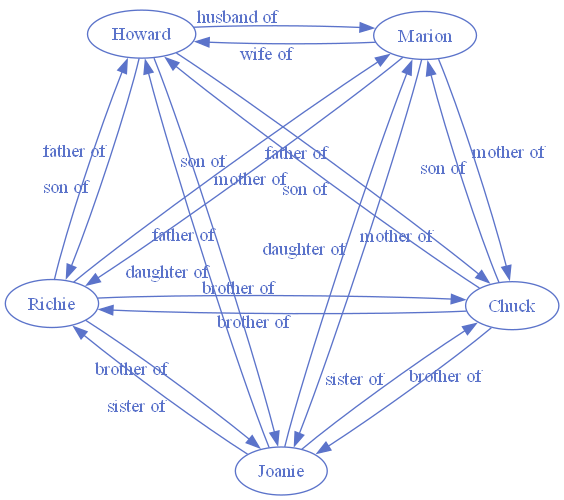

Example of labeled edges showing family relationships

Splines

The way edges are routed and drawn in a graph is controlled by the splines setting. Graphviz supports several spline types, each producing a different style of edge routing.

The available options are described below.


curved

Edges are drawn as smooth, continuous curves between nodes.

This style produces flowing, organic connections.

Edges drawn as smooth curved splines


line

Edges are drawn as single straight lines between nodes.

This is the simplest and most geometric routing style.

Edges drawn as straight lines


none

Edges (and edge labels) are not drawn, but the underlying relationships still influence node placement.

Useful when you want layout guidance without visible edges.

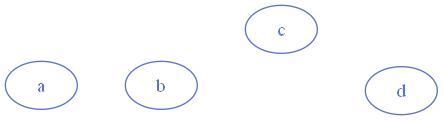

Graph with no visible edges


ortho

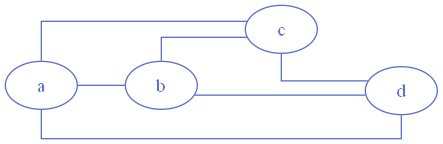

Edges are routed using horizontal and vertical segments with 90‑degree bends.

Ideal for diagrams that benefit from clean, rectilinear structure.

Edges routed with orthogonal 90-degree bends


polyline

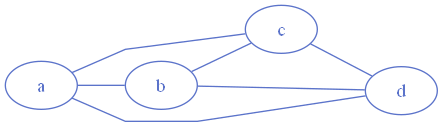

Edges are drawn as straight segments with angular bends.

This style preserves sharp turns without enforcing strict right angles.

Edges drawn as polylines with angular bends


spline

Edges are drawn using a combination of straight segments and free‑flowing curves.

This is the most flexible routing style and often reduces visual clutter in dense graphs.

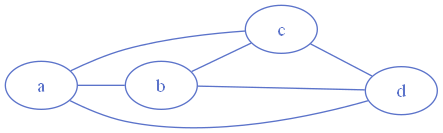

Edges drawn using mixed straight and curved spline routing

Ports

A port can be combined with a node name to specify exactly where an edge should attach to that node.

Graphviz provides several built‑in port names that correspond to compass points:

Port NameRepresents
cCenter
nNorth
sSouth
eEast
wWest
neNorth-East
nwNorth-West
seSouth-East
swSouth-West

Ports allow you to control the entry and exit points of edges, which can help reduce crossings or emphasize directional flow.

Example of edges connecting to specific compass ports on a node

Custom ports can also be defined when using HTML‑like labels or the record node shape.

This allows edges to connect to specific fields or sub‑components within a node.

Clusters / Subgraphs

A cluster is a special type of subgraph that groups related nodes and edges inside a distinct rectangular region.

Clusters are defined as subgraphs within the parent graph, and Graphviz automatically draws a bounding box around each one.

Only the dot, fdp, neato, and osage layout engines support visual cluster rendering.

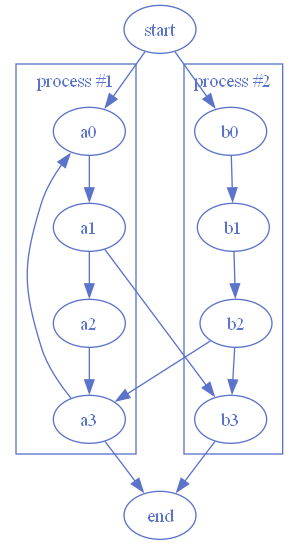

In the example below, the rectangles labeled process #1 and process #2 are clusters (subgraphs) contained within the overall graph.

Example of clusters showing grouped nodes inside bounding boxes

Layout Algorithms

Graphviz provides several layout engines, each using a different algorithm to position nodes and route edges. Some layouts are optimized for hierarchical structures, others for clusters, radial patterns, or force‑directed placement. Choosing the best layout is often a matter of experimentation to see which representation communicates your data most effectively.

Descriptions of the available layout engines (based on the Graphviz documentation) are as follows:


circo

Circular / Cyclic

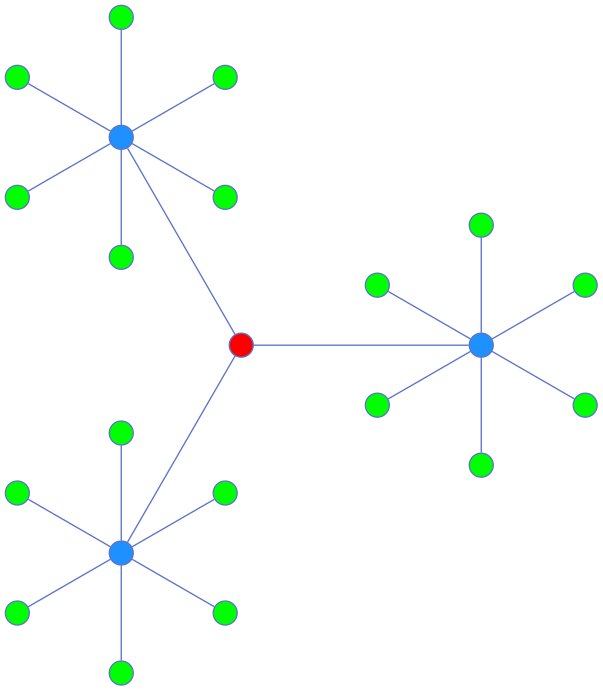

Circular layout produced by the circo engine

Produces circular layouts.

Designed for graphs with multiple cyclic structures and is useful for telecommunications diagrams or any network with repeating loops.

  • Best for: Cycles, rings, telecommunications networks
  • Strengths: Emphasizes circular symmetry
  • Avoid for: Hierarchies or tree structures

dot

Hierarchical / Layered

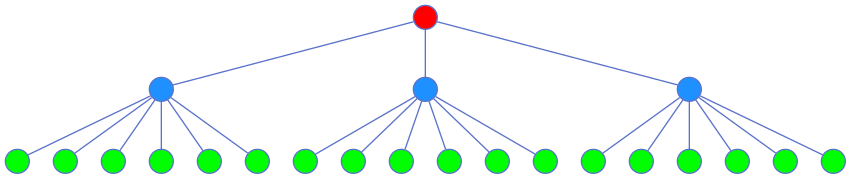

Hierarchical layout produced by the dot engine

Creates hierarchical or layered drawings of directed graphs.

Ideal when you want clear top‑to‑bottom or left‑to‑right flow, making it the default choice for most structured diagrams.

  • Best for: Directed graphs, workflows, org charts, dependency trees
  • Strengths: Clear direction (TB, LR), predictable structure
  • Avoid for: Dense undirected networks

fdp

Spring Model (Force Reduction)

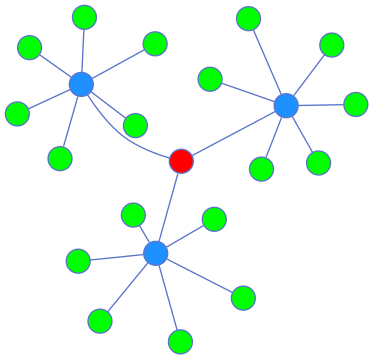

Force-directed layout produced by the fdp engine

A force‑directed placement algorithm similar to neato, but it reduces forces directly rather than minimizing an energy function.

Useful for undirected graphs where a natural, organic layout is desired.

  • Best for: Undirected graphs needing organic spacing
  • Strengths: Similar to neato but uses force reduction
  • Avoid for: Very large graphs (use sfdp instead)

neato

Spring Model (Energy Minimization)

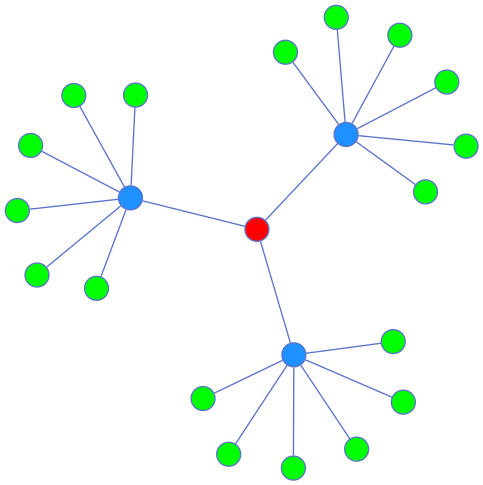

Spring-model layout produced by the neato engine

A classic spring‑model layout engine.

Best for small to medium‑sized undirected graphs (roughly up to 100 nodes).

Neato attempts to minimize a global energy function, producing layouts similar to multidimensional scaling.

  • Best for: Small–medium undirected graphs (~100 nodes)
  • Strengths: Balanced, natural layouts
  • Avoid for: Very large graphs

osage

Clustered Rectangular Packing

Clustered rectangular packing layout produced by the osage engine

Designed for clustered or multi‑level undirected graphs.

Osage arranges clusters into rectangular regions (“levels”) and then packs these regions together.

Within each region, the subgraph is laid out independently.

  • Best for: Multi‑level clustered graphs
  • Strengths: Separates clusters into rectangles and packs them
  • Avoid for: Flat, non‑clustered graphs

patchwork

Squarified Treemap

Treemap-style layout produced by the patchwork engine

Draws the graph as a squarified treemap, using cluster structure to determine the hierarchy.

Ideal for visualizing nested groupings or proportional areas.

  • Best for: Hierarchical clusters, proportional areas
  • Strengths: Treemap‑style visualization
  • Avoid for: Non‑clustered graphs

sfdp

Multiscale Force‑Directed

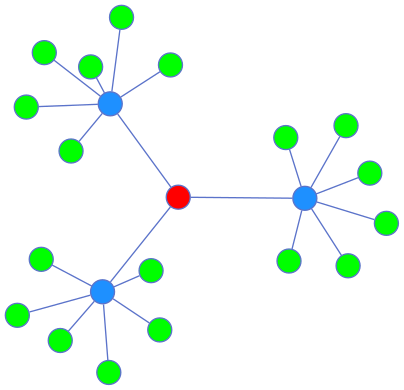

Multiscale force-directed layout produced by the sfdp engine

A multiscale version of fdp, optimized for very large graphs.

It uses a hierarchical approximation to compute force‑directed layouts efficiently at scale.

  • Best for: Very large undirected graphs
  • Strengths: Scales efficiently, good for thousands of nodes
  • Avoid for: Small graphs (overkill)

twopi

Radial / Concentric Circles

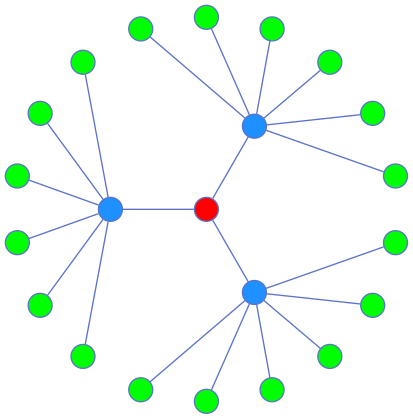

Radial layout produced by the twopi engine

Produces radial layouts.

Nodes are placed on concentric circles based on their distance from a chosen root node, making it ideal for tree‑like structures or distance‑based visualizations.

  • Best for: Rooted trees, distance‑based layouts
  • Strengths: Clear radial structure
  • Avoid for: Dense or cyclic graphs

Layout Engine Comparison

Layout EnginePrimary Style / AlgorithmBest ForNot Ideal ForNotes
circoCircular / cyclic placementCycles, rings, telecommunications networksStrict hierarchies or tree structuresEmphasizes repeated loops and circular symmetry
dotHierarchical / layeredDirected graphs, workflows, dependency treesDense undirected networksMost control over direction (TB, LR, etc.)
fdpForce‑directed (force reduction)Undirected graphs needing organic spacingVery large graphs (use sfdp instead)Similar to neato but uses force reduction rather than energy minimization
neatoForce‑directed (energy minimization)Small–medium undirected graphs (~100 nodes)Large graphs or strict hierarchiesProduces layouts similar to multidimensional scaling
osageCluster‑level rectangular packingMulti‑level clustered graphsNon‑clustered or flat graphsLays out each cluster in its own rectangle, then packs them
patchworkSquarified treemapHierarchical clusters, proportional areasNon‑clustered graphsUses cluster structure to build a treemap‑style layout
sfdpMultiscale force‑directedVery large undirected graphsSmall graphs (overkill)Scales well using hierarchical approximations
twopiRadial / concentric circlesRooted trees, distance‑based layoutsDense or cyclic graphsPlaces nodes on circles based on distance from a root

Quick‑Reference: Choosing a Graphviz Layout

Use this guide to quickly select the layout engine that best fits your graph’s structure and purpose.


If your graph is…

  • Hierarchical or directional → Use dot
    Clear top‑to‑bottom or left‑to‑right flow; ideal for workflows, org charts, dependency trees.

  • Small–medium and undirected → Use neato
    Produces balanced, natural layouts using a spring‑model energy function.

  • Undirected and organic‑looking → Use fdp
    Similar to neato but uses force reduction; good for medium‑sized networks.

  • Very large and undirected → Use sfdp
    Multiscale force‑directed algorithm optimized for thousands of nodes.

  • Cyclic or ring‑structured → Use circo
    Best for loops, cycles, and circular network patterns.

  • Clustered into multiple groups → Use osage
    Places each cluster in its own rectangle and packs them together.

  • Hierarchical clusters or treemap‑style visuals → Use patchwork
    Converts cluster structure into a squarified treemap layout.

  • Rooted or distance‑based → Use twopi
    Radial layout placing nodes on concentric circles around a root.


Quick Tips

  • Start with dot for anything directional.
  • Try neato or fdp for undirected graphs when you want a natural look.
  • Switch to sfdp if the graph becomes too large or slow.
  • Use circo when cycles are the main feature.
  • Use osage or patchwork when clusters matter more than edges.
  • Use twopi when distance from a root node is the key story.

When in doubt

Generate previews with dot, neato, and sfdp first — these three cover most practical cases and quickly reveal which style fits your data.
